SPECIFICATIONS

Brand Name: Foundown

Built-in Device: Yes

External Testing Certification: ce

High-concerned chemical: none

Item Diameter: 3.7

Item Height: 1.3

Item Length: 7.5

Item Weight: 98

Item Width: 3.7

Material: ABS

Model Name: FO-HM032A

Origin: Mainland China

Special Features: Hour Meter/Tachometer

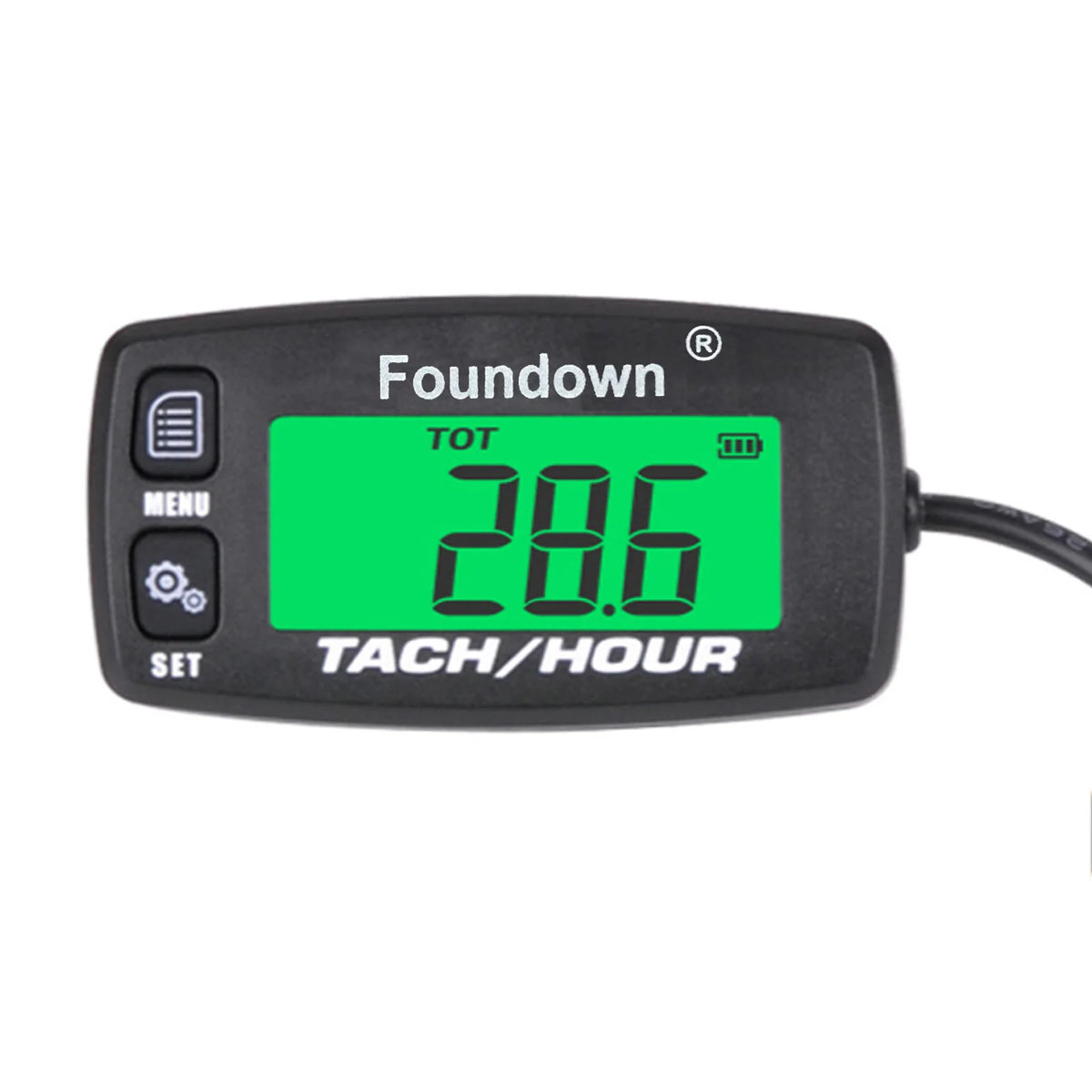

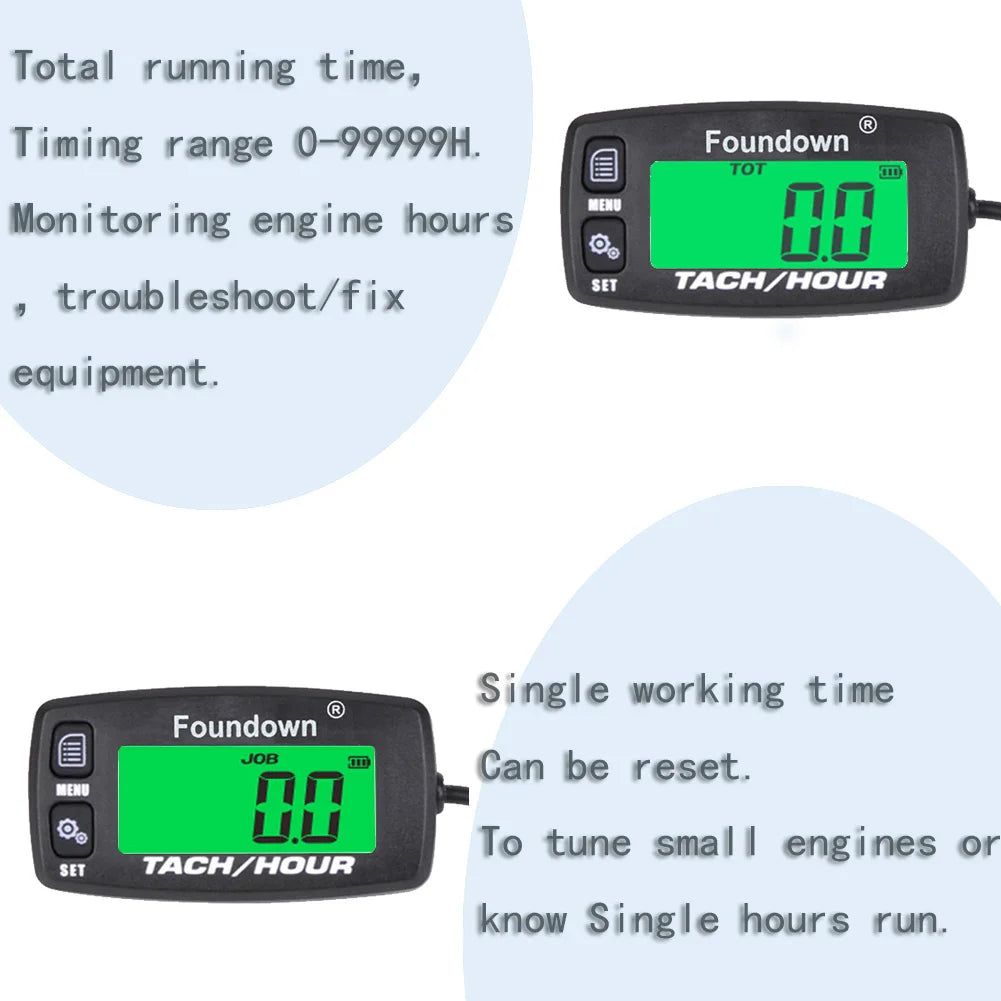

Mini Engine Hour Meter-Accumulated driving time 0 to 999999 hours, not resettable. Correctly recording the usage time of the petrol engine helps the health management of the engine. After shutting down the engine, the display will show the total running time of the engine and keep the display. 0.1 hour accuracy

Equipment Maintenance-Waterproof meter maintenance range 0.99999 hours, Resettable。can be set carburetor, chain oil, air
filter, etc. replacement or adjustment of individual operating time records. Service warning icon flashes and notifies you when maintenance time is approaching.

Digital Tachometer-Measures engine RPM of management equipment, measures RPM of motorcycles without tachometers and original payment, captures the relationship between speed and RPM during high speed cruising, captures engine sound and RPM, and measures idling values while adjusting the motorcycle cab.

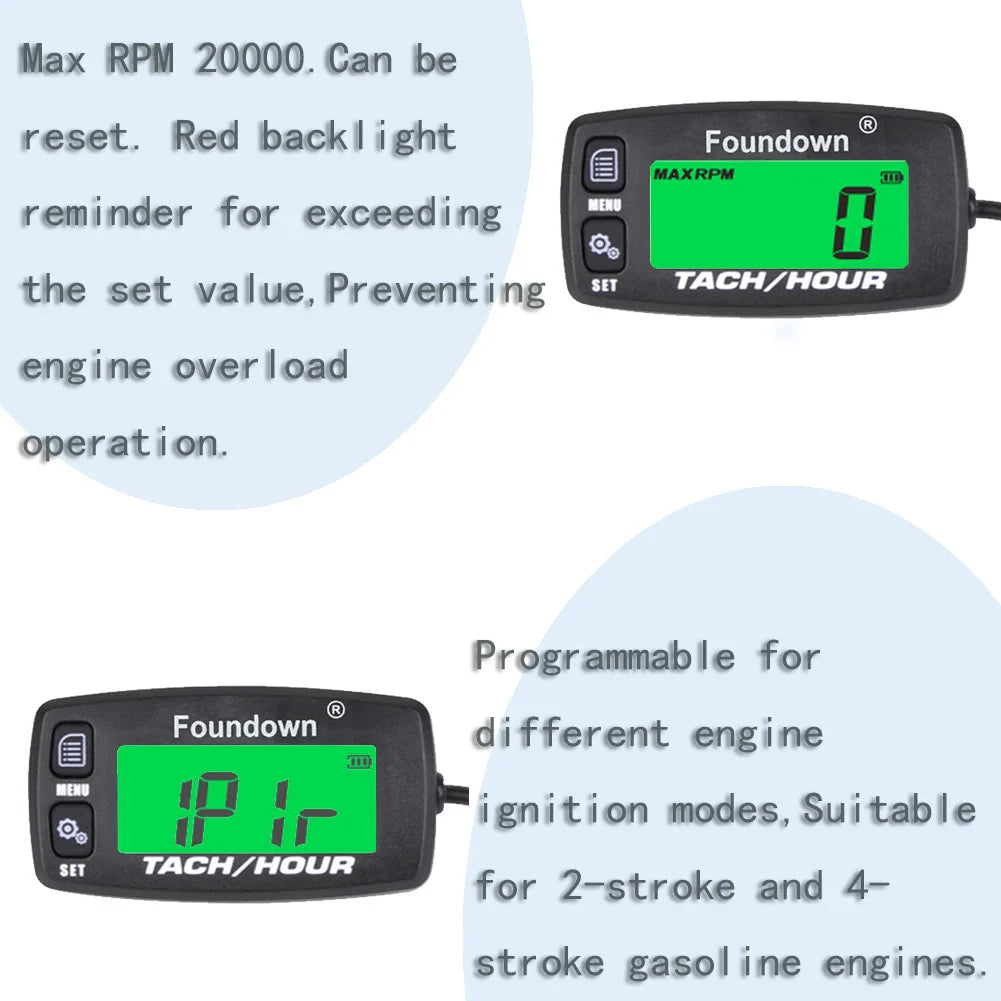

Tiny Tach Meter-Programmable for different engine ignition modes, up to 25000 RPM, Red backlight reminder for exceeding the set value，can prevent unnecessary high speed combustion, no overloading of the engine, can be assured, to protect your safety and property.

Rpm Gauge Meter -Battery (CR2032) can be replaced, the data is still maintained after battery replacement. Can be turned off, ip65
waterproof. Small digital engine winch suitable for car mowers, outboards, lawn mowers, snowplows, chain saws, farm equipment carriers.

Small Engine Tachometer, RPM measurement,Digital Hour Meter, Monitoring engine hours for Ultralight aircraft, Chainsaw, Motorcycle, Dirt bike, Scooters, go kart,Lawn Mower .

Some Secrets about the Product :

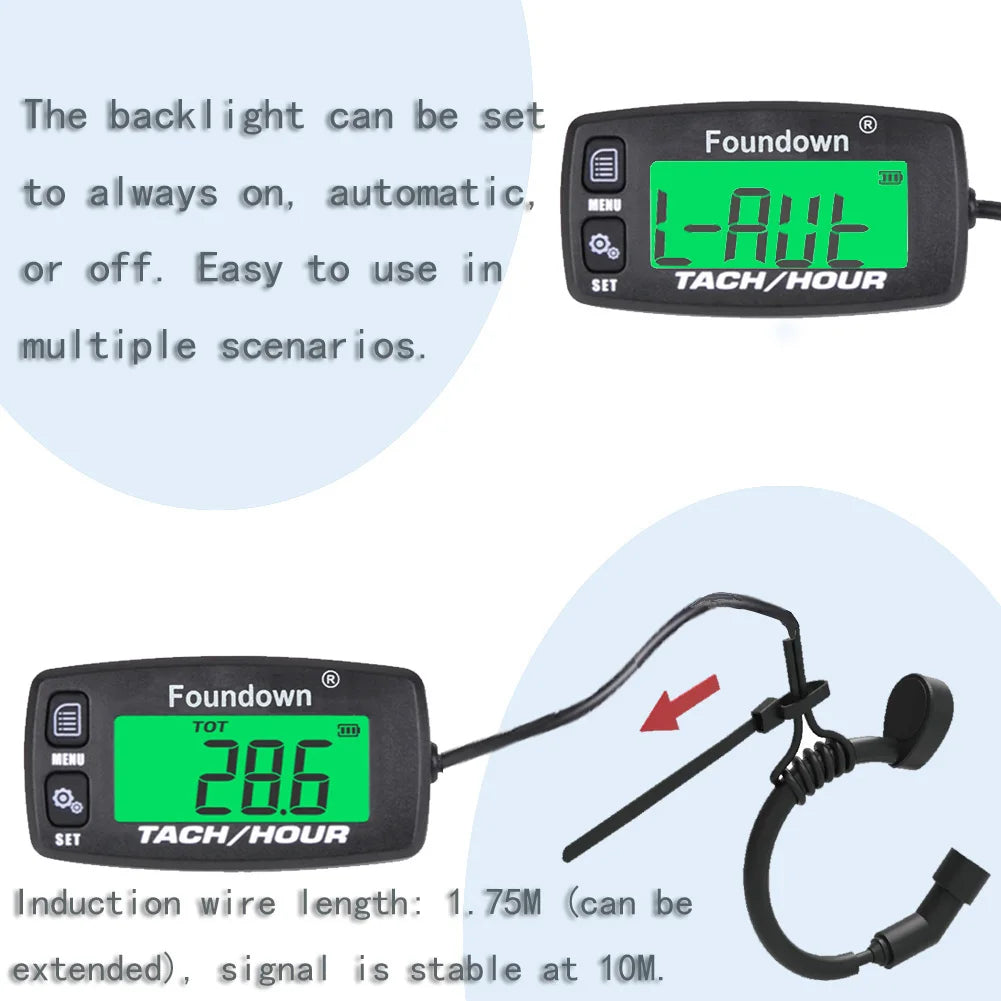

1.Wrap the tachometer black wire around the spark plug wire 5-8 times and secure with cable ties.

 2.Open the battery compartment on the back of the product, remove the battery insulation sheet, and press any key to turn on the power.

 In the total time interface he TOT 0.0, press "M" + "S" simultaneously to turn off the tachometer.

 3.Induction wire length: 1.75M (can be extended), signal is stable at 10M. (It can be cut short and does not affect signal reception, but you need to do it yourself)

4.Displays current engine RPM when engine is running. The engine will stop and the tachometer will display the running time.

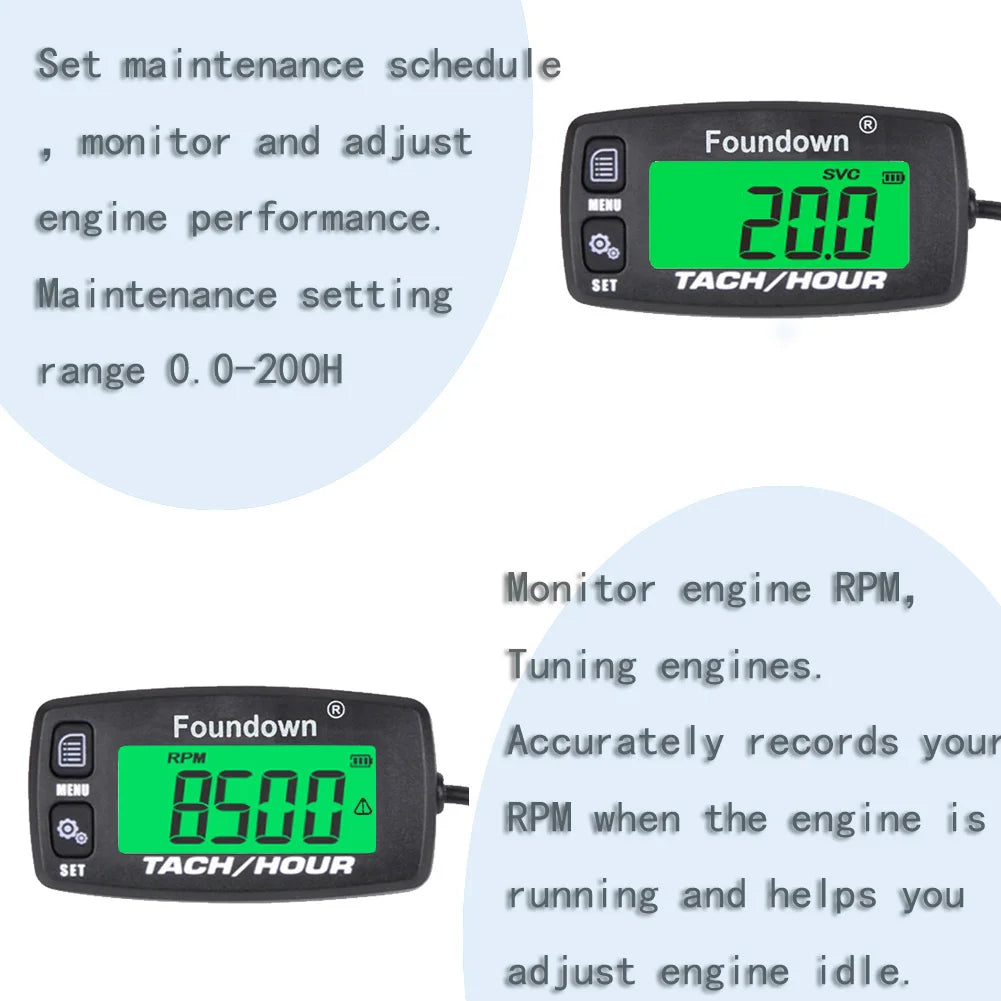

5.Maintenance range 0.999999 hours, service warning icon flashes to notify when maintenance time is approaching.

6.Digital Tachometer - Measures engine RPM on management equipment,Max RPM 20000RPM,10 RPM resolution,RPM update time refresh rate: 0.5S.Accurately records your RPM when the engine is running and helps you adjust engine idle.

7.The button can work even after 10,000 times of repeated tapping under the weight of 300 grams.The display is made of PC transparent board, which prevents moisture and humidity from entering.

8.It also prevents strong vibrations during cleaning.

9.Excellent anti-vibration performance allows it to withstand strong vibrations during work.

10.ABS plus special material, anti-vibration, anti-sun, anti-oxidation, long life, works in temperature environment from -40℃ to +70℃.

Timing range:
0-99999H (accuracy: 0.1H/H)

Maintenance setting range 0.0-200H

Rotation speed range 0 to 25,000 rpm rev/min (Accuracy: 10 rpm)

Rotation speed refresh rate 0.5 sec or 1 sec

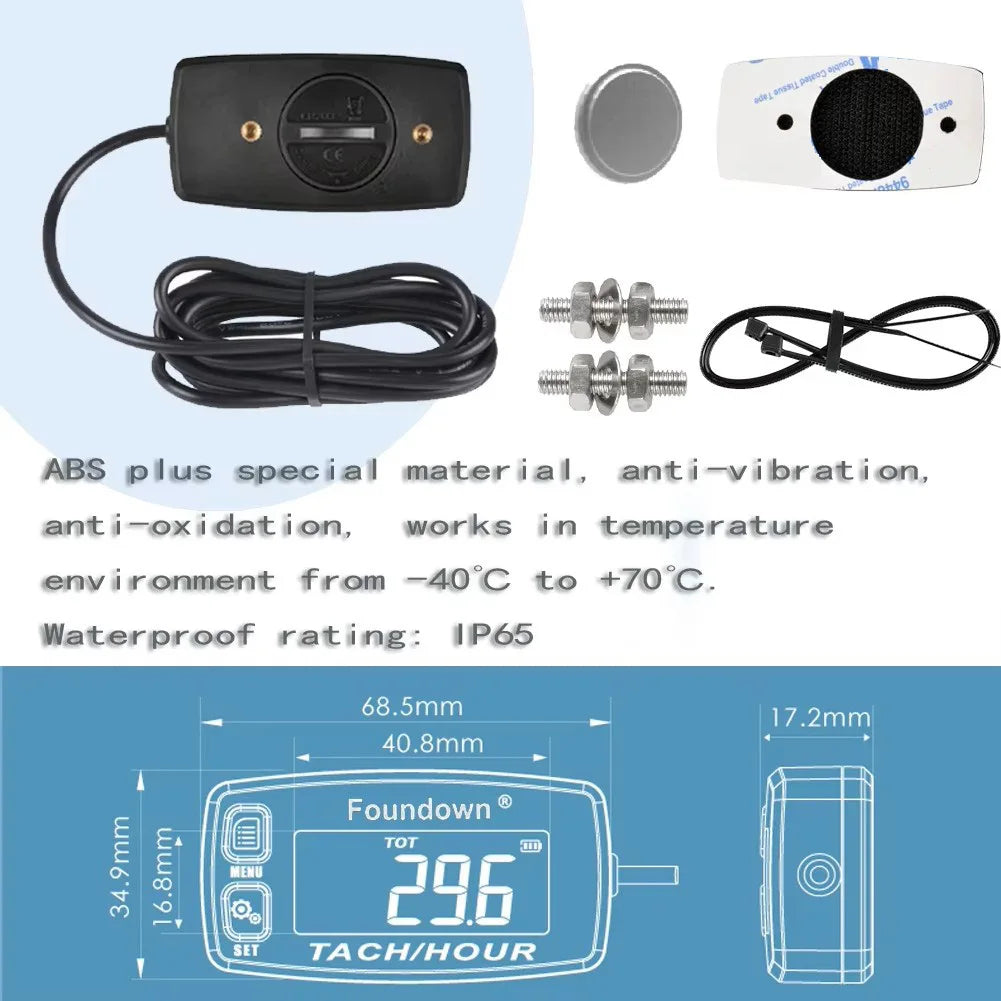

Product size 68.5*34.9*17.2mm (Waterproof rating: IP65)

Screen size 40.8*16.8mm

Battery type CR2032 210 mAh

For engine types 2-stroke (1, 2, 3, 6 cylinders) and 4-stroke (1, 2, 3, 4, 5, 6, 8, 12 cylinders).

Suitable for ATV UTVs, motorcycles, marine engines, pumps, generators, model boats,scooters, chainsaws, industrial engines such as lawn mowers and snow blowers, and other two-wheel and four-wheel vehicles.
